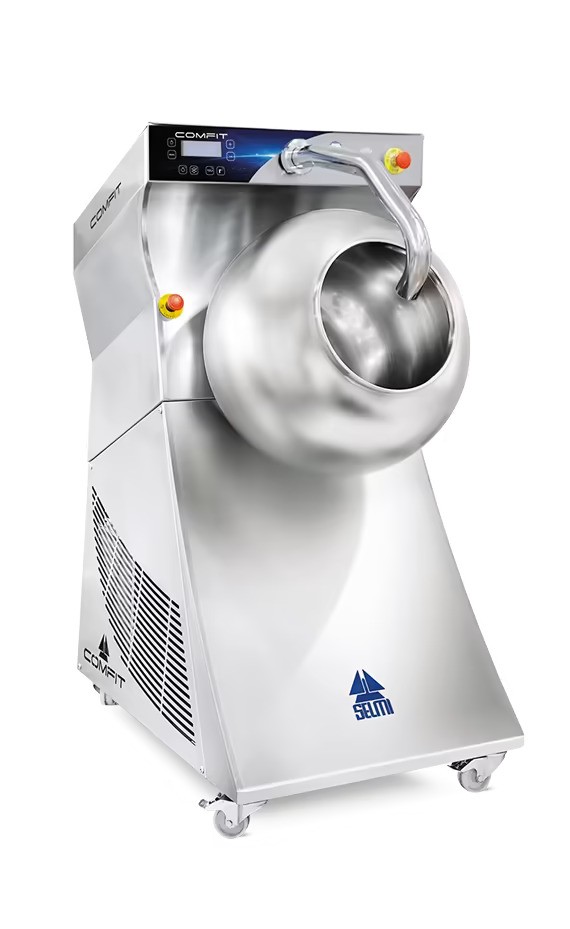

Comfit Chocolate And Sugar Coating Panning Machine
The coating pan Comfit is made entirely of AISI 304 steel and is equipped with an electronic speed control to optimize the chocolate and sugar coating of different types and sizes of products be it chocolate dragees, sugar confectionery.
The coating pan Comfit is made entirely of AISI 304 steel and is equipped with an electronic speed control to optimize the chocolate and sugar coating of different types and sizes of products be it chocolate dragees, sugar confectionery.
Description
The coating pan Comfit is made entirely of AISI 304 steel and is equipped with an electronic speed control to optimize the chocolate and sugar coating of different types and sizes of products. Chocolate dragees, sugar confectionery.
The introduction of air into the rotating tank cavity is controlled by a cooling system aimed at speeding up the enlargement of the dragees via the introduction of chocolate. In the following phase a resistance is used to smoothen and polish the product and clean the machine.
The thermoregulator on the control panel enables the adjustment of the temperature to suit the required processing.
Technical Specifications
- Electrical specification: 220 V single phase - 50 Hz.
- Power required: 1.8 Kw - 16 A - 3 poles.
- Tank capacity: 20 Kg.
- Hourly production rate: about 20 Kg.
- Cooling unit: 1100 frigories/h.
Characteristics
- Dimensions: [mm] (LxWxH) 720x1100x1500.
- Empty weight: 117 Kg.
- First coating pan on the market to be equipped with a cooling unit.
- Rapid change between cold and hot air.
- Can be equipped with the automatic SpraySystem, which needs to be connected to a source of compressed air.
- Interchangeable air filter.
